Dual 18 " Strong Subwoofer Line Array Speaker
- Introduction
- Specification
- Video
- Connection
- Leave message
- Download

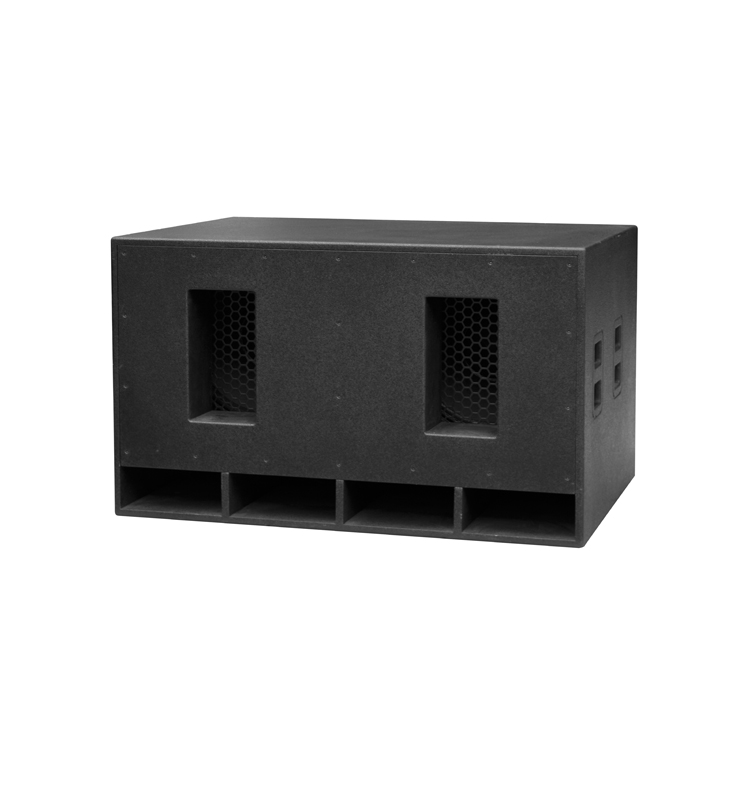

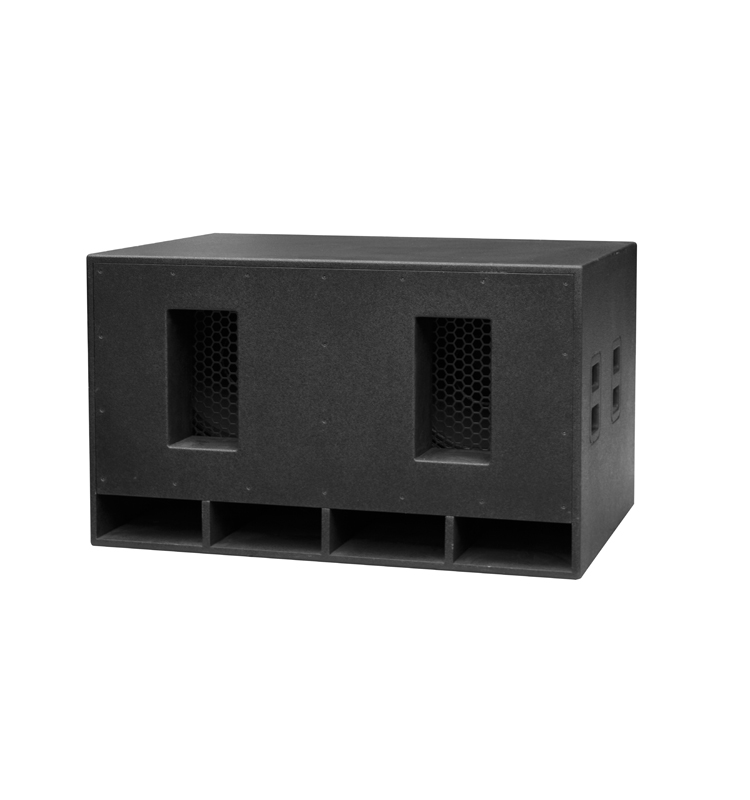

SR-LA2218 is a subwoofer with band-pass design, which adopts 2PCS 18 "(260 magnet 115) 4Ω impedance output high performance ultra-low frequency loudspeaker.
This design overcome the Direct-cabinet design defects,which makes SPL get the increasing of 3dB on its 50HZ. The sound is powerful,low and deep,flexible.
The box body is made of high strength plywood with precision work coating.
| Model No. | SR-LA2218 |
| Frequency Response | 33Hz~300Hz |
| LF Driver：LF | 18"×2(260 Magnet 115mm ) |
| Rated Power：LF | 1800W |
| Peak Power：LF | 7200W |
| Impedance：LF | 4 Ω |
| Sensitivity（1W/1m)db | 103dB (1w@1m) |
| Maximum Continuous SPL | 130dB (Cmax@1m) |
| Maximum Peak SPL | 139dB (Pmax@1m) |
| Material | 18mm Plywood |
| Connectors | SPEAKON NL4×2 |
| Dimensions | L1100×H650×W780 |
| Net Weight（kg） | 93kg |
