8〞3-Way Large Scale Line Array Speaker
- Introduction
- Specification
- Video
- Connection
- Leave message
- Download

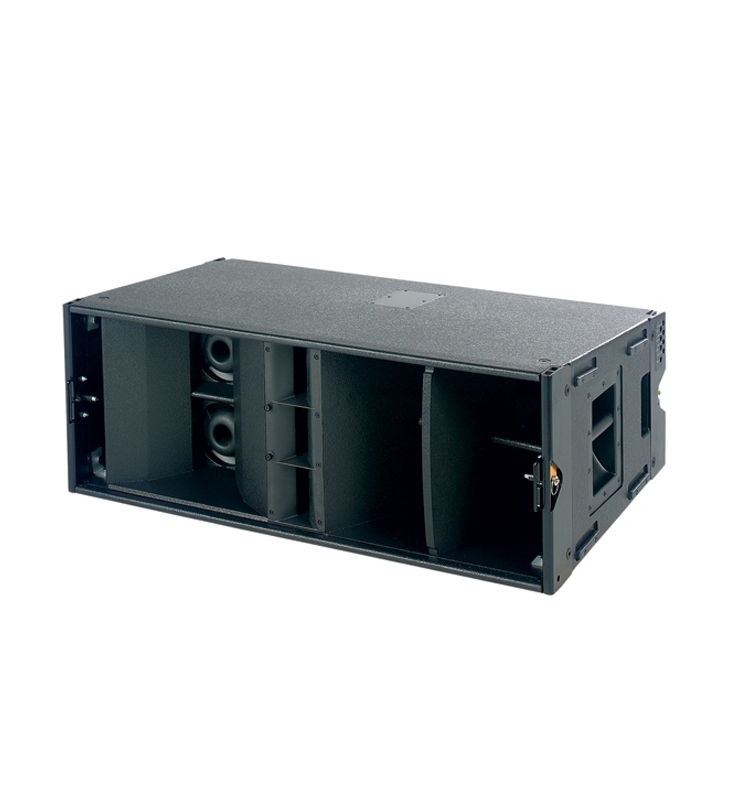

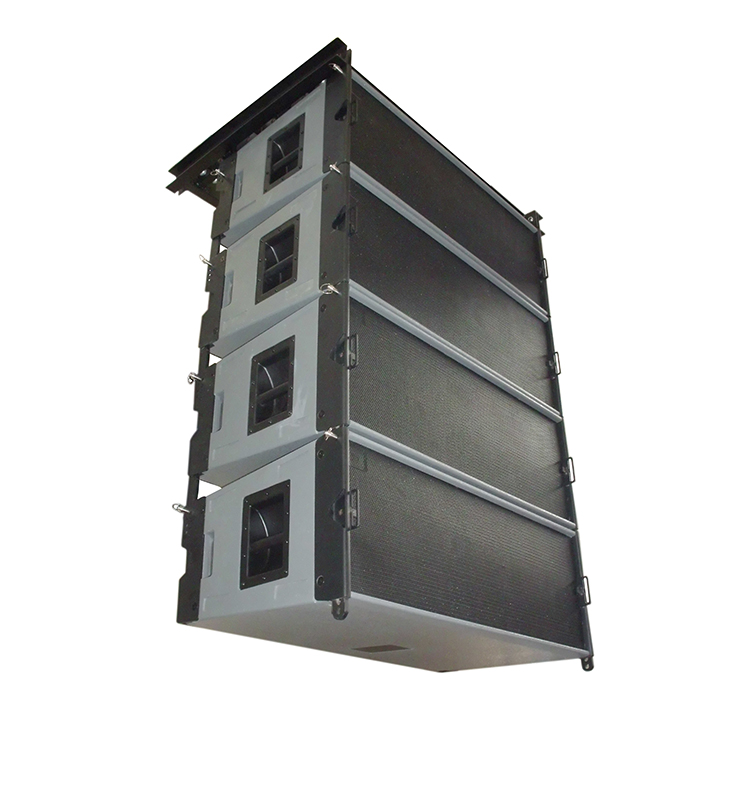

SR-W8LM is a 3-way 8 " linear array loudspeaker, which is composed of 1pcs 8" bass unit, 1pcs 8 " midtone units and 2pcs 34mm high pitch drivers.
| Model No. | SR-W8LM |
| Frequency Response | 45Hz~20KHz |
| LF Driver:LF | 8"×1 |
| MF Driver:MF | 8"×1 |
| HF Driver:HF | 34mm×2 |
| Rated Power | LF(200W) MF(200W) LF 100W |
| Peak Power | LF(800W) MF(800W) HF(400W) |
| Impedance | LF(8 Ω or 16 Ω) MF(8 Ω or 16 Ω) H F(8 Ω or 16 Ω) |
| Sensitivity（1W/1m)db | 126dB (1w@1m) |
| Maximum Continuous SPL | 128dB (Cmax@1m) |
| Maximum Peak SPL | 132dB (Pmax@1m) |
| Dispersion（-6dB） | 100° Hor×7.5° Ver (HF-Horn) |
| Material | 18mm(0.7") PLYwood |
| Connectors | SPEAKON NL8×2 |
| Dimensions | L620×W400×H243mm |
| Net Weight（kg） | 29kg |
