12〞3-Way Large Scale Line Array Speaker
- Introduction
- Specification
- Video
- Connection
- Leave message
- Download

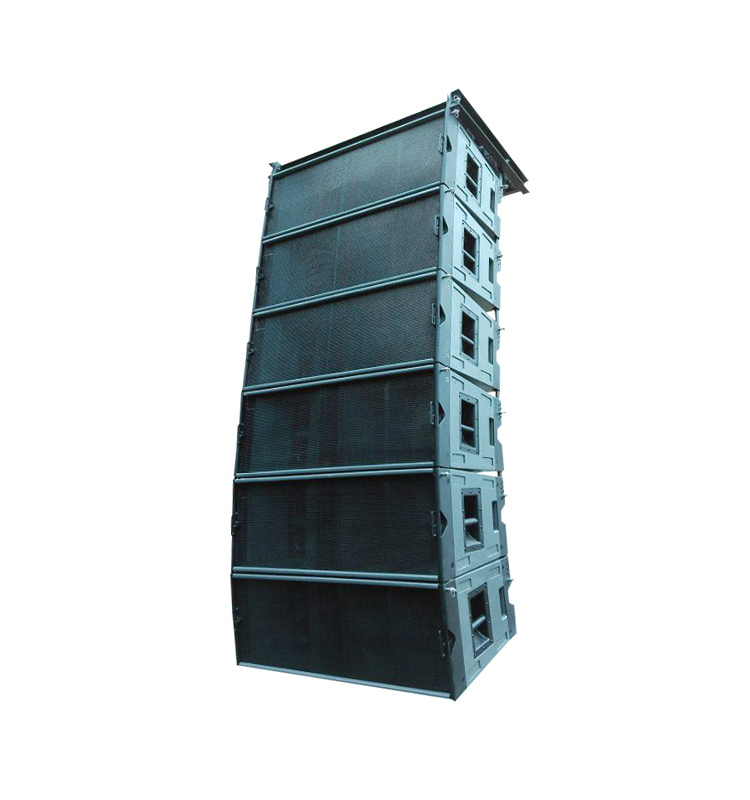

SR-W8LC is a 3-way 12 " linear array loudspeaker, which is composed of 1pcs 12" neodymium magnetic 75 core bass unit, 2pcs 8 ohm 6.5 "midtone units and 3pcs 34 core 26mm throat high pitch drivers.
It is a cost-effective, simple and easy to debug and large scale linear array speaker. The treble is delicated and melodious. The midtone is solid and clear, the bass is deep and full, thick and soft, which really brings you a great impact on your hearing.
| Model No. | SR-W8LC |
| Frequency Response | 45Hz~20KHz |
| LF Driver:LF | 12"×1 (NEO) |
| MF Driver:MF | 6.5"×2 (38mm) |
| HF Driver:HF | 34mm×3 |
| Rated Power | LF(350W) MF(200W(100W×2) LF 150W(50W×3) |
| Peak Power | LF(1400W) MF(800W) HF(400W) |
| Impedance | LF(8 Ω or 16 Ω) MF(16 Ω) HF(24 Ω) |
| Sensitivity（1W/1m)db | 102dB (1w@1m) |
| Maximum Continuous SPL | 129dB (Cmax@1m) |
| Maximum Peak SPL | 135dB (Pmax@1m) |
| Dispersion（-6dB） | 90° Hor×7.5° Ver (HF-Horn) |
| Material | 18mm(0.7") PLYwood |
| Connectors | SPEAKON NL8×2 |
| Dimensions | L1000×W571×H364mm |
| Net Weight（kg） | 53kg(NEO LF) |
