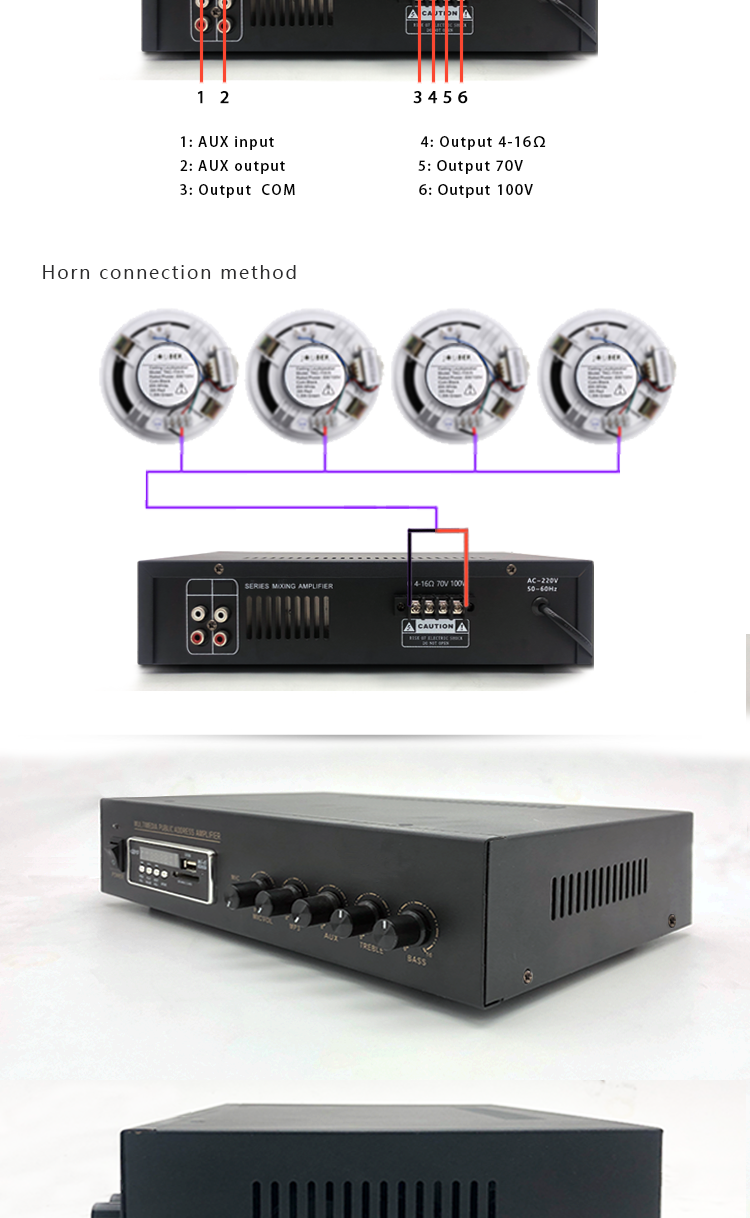

- Connection
- Leave message
- Download
SR-ABC50 is a Mini small size bluetooth digital amplifier broadcast system,it is simple and cost-effective,poratble and convenient for stores and classrooms.
The latest high-performance ARM core master control and highly efficient energy-saving digital power amplifier circuit are adopted.
Support wireless Bluetooth and U disk /FM/ SD card /MP3 playback. Bluetooth connection playback.

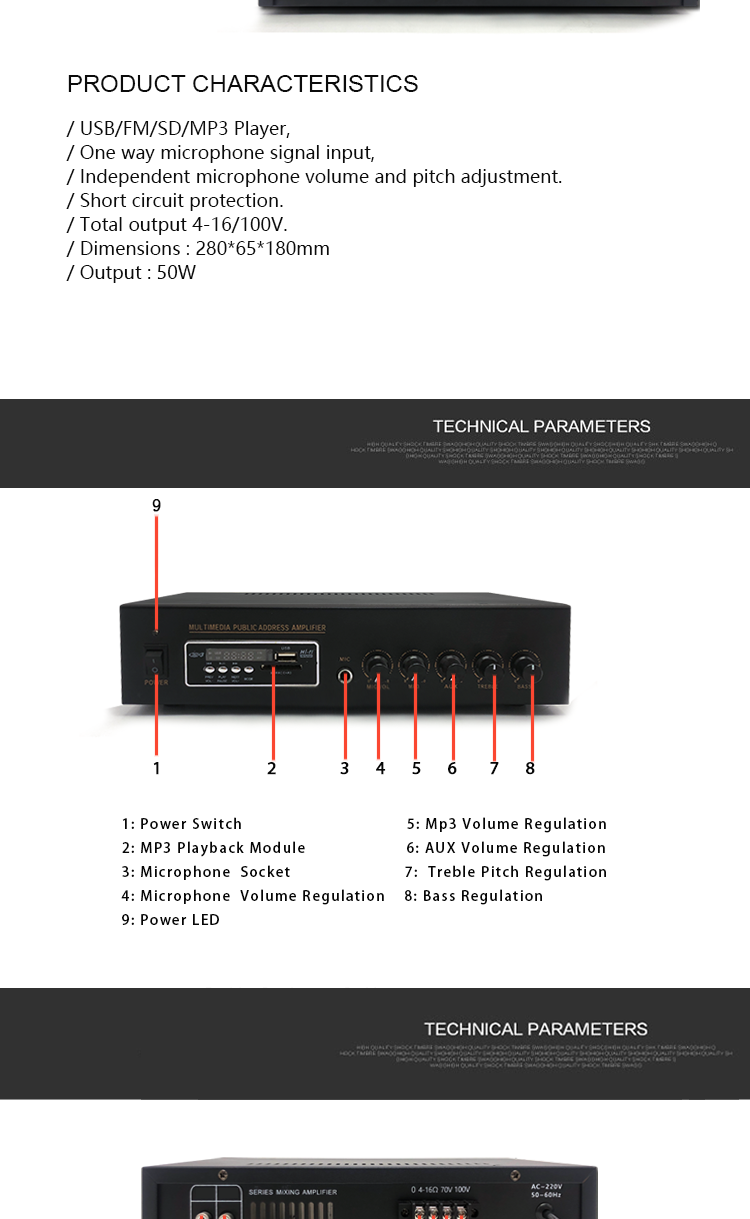

1 way microphone input,4 way line signal input,1 way signal output. Independent microphone volume and high pitch adjustment.
Short circuit protection.Support REC and digital volume control.
Aluminum-alloy casing, small volume & portable, firm & durable.
| Model No. | SR-ABC50 |
| Power Output | 50W |
| Power Supply | AC220±5% 50-60Hz |
| Frequency Response | 80Hz- 18KHz ±2dB |
| Output Mode | 4-16ohm /100V |
| SNR | >80dB Total |
| Function | FM/MIC/ Bt/USB/SD |
| Microphone Input | 1 Way |
| Line Signal Input | 4 Way |
| Signal Output | 1 Way |
| Size(mm) | 280x 180x 65 |
暂无文件可下载
