8ΩConstant Voltage Coaxial Tweeter Ceiling Speaker
- Introduction
- Specification
- Video
- Connection
- Leave message
- Download

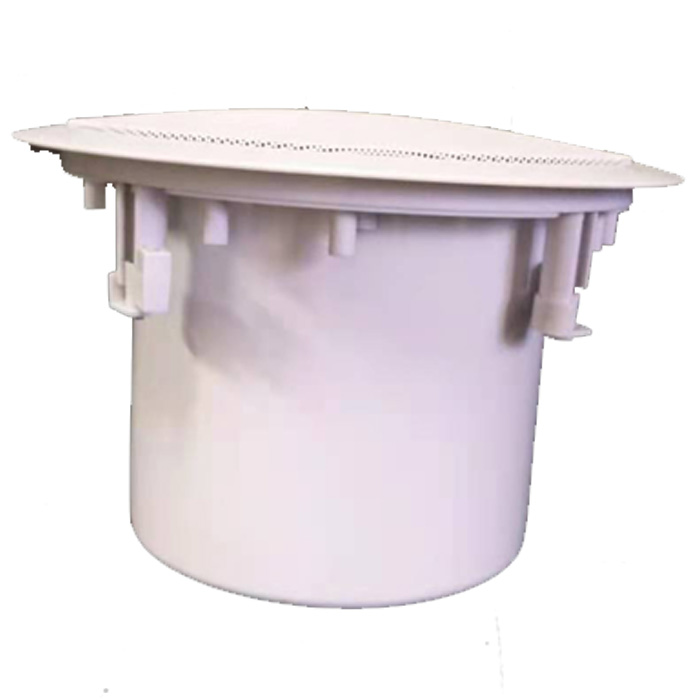

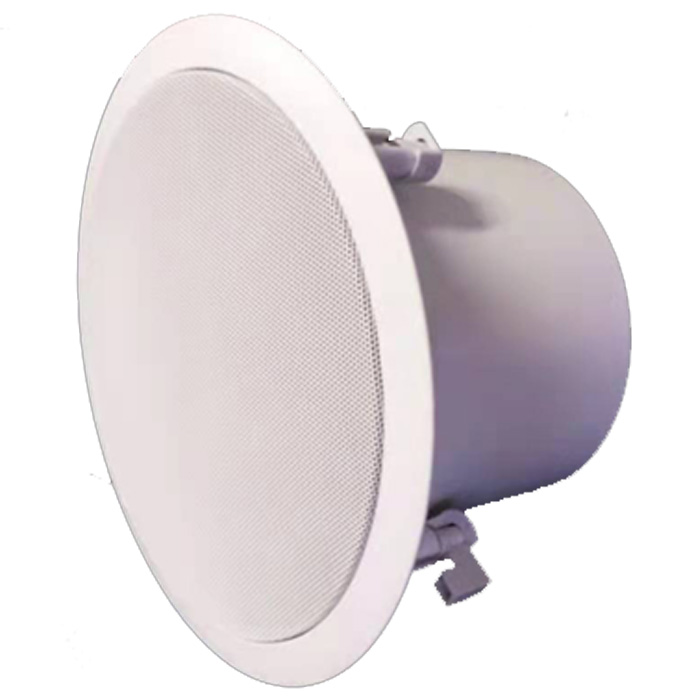

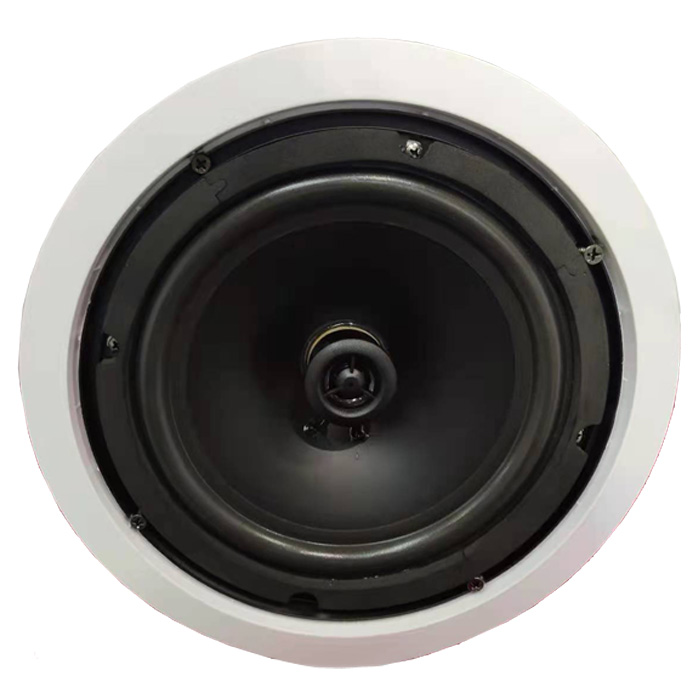

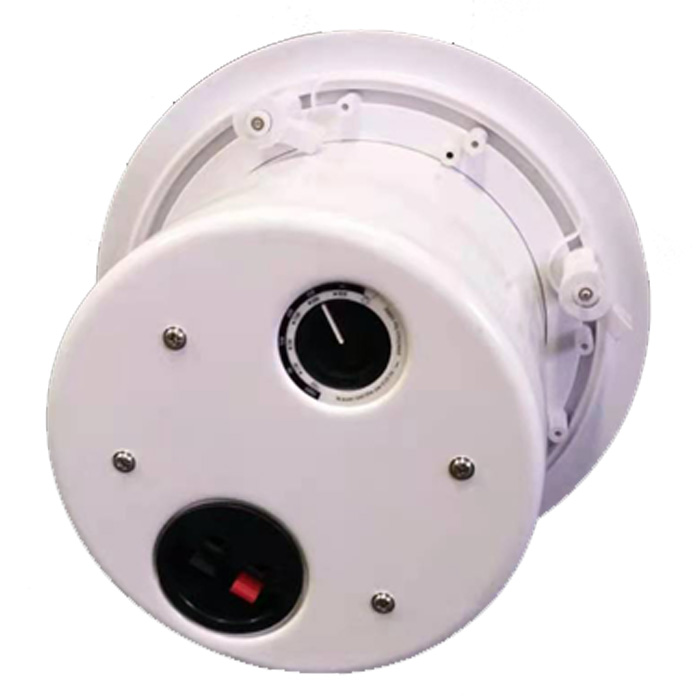

SR-CCT5-8 Series is 5〞 6.5〞8〞8Ω Constant Voltage Coaxial Tweeter Power Adjustable by knob screw.
Its Wall Mount PA System Ceiling Speaker with a 70v/100v transformer built-in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
It uses Japan Original Paper Pot, MKP HIFI Class Capacitor to receive nice sound effect and make it long lifetime. Expecially SR-CCT8, who makes with 35 Core Voil Coil to give back you better feel about the sounds.
| Model No. | SR-CCT5 | SR-CCT65 | SR-CCT8 |
| Rated Power | 20W | 30W | 40W |
| Power taps: | 2.5/5/10/20W | 3.8/7.5/15/30W | 5/10/20/40W |
| Voltage | 8Ω | 8Ω | 8Ω |
| Input Voltage | 70/100V | 70/100V | 70/100V |
| Freq. Resp | 100-20KHZ | 90--20KHZ | 50-20KHZ |
| Sensitivity | 88DB | 89DB | 90DB |
| Speaker Unit | 5〞X 1 | 6.5〞X 1 | 8〞X 1 |
| Material | ABS panel iron cover | ABS panel iron cover | ABS panel iron cover |
| Housing Color | White | White | White |
| Size(mm) | Φ203x145mm | Φ230x150mm | Φ270x185mm |
| Mounting hole | Φ175mm | Φ205mm | Φ245mm |
| N.W. | 1.7kg | 2.2kg | 3.1kg |
